DLink - Installation with a DSL modem (with username and password)

• To begin installation, turn off your computer and disconnect the power adapter to your High Speed Internet modem.
• Connect an Ethernet cable from the High Speed Internet modem to the WAN port of the Home Phone Adapter.
• Connect a second Ethernet cable from the LAN port of the Home Phone Adapter to your computer.
• Connect your telephone handset to the PHONE 1 port of the Home Phone Adapter.
• Connect the High Speed Internet modem to a power outlet.
  Note: Please wait 2 minutes before continuing to the next step.
• Connect the Home Phone Adapter to the power outlet.

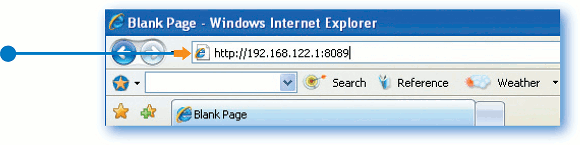

• Start your computer. Open a browser window, type "http://192.168.122.1:8089" into the address field and press the "Enter" key.

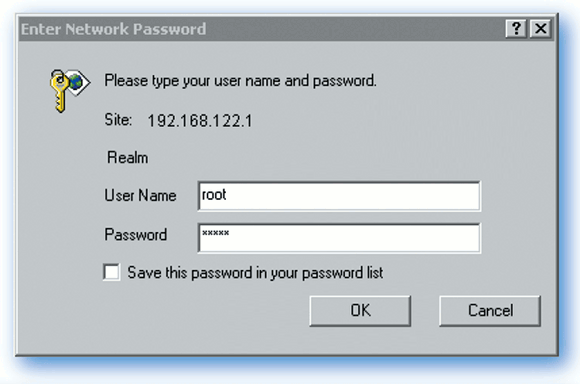

• Enter the following User Name and Password, and click "OK":


  User Name:root
  Password:admin

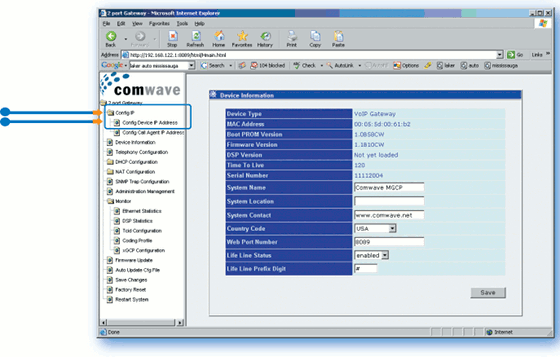

• In the left menu, click on "Config IP" and then select "Config Device IP Address".

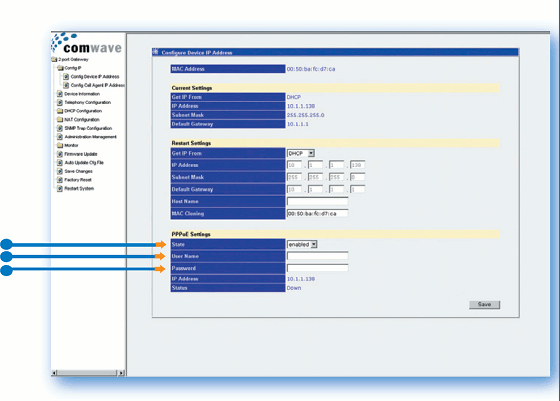

• In the main window (under the section called "PPPoE Settings"), ensure that the dropdown menu is set to "enabled". Fill in the User Name and Password provided by your Internet Service Provider. Note:It is imp ortant to be very accurate.The user name and password are case sensitive. Any mistakes will prevent your Comwave Home Phone from working.

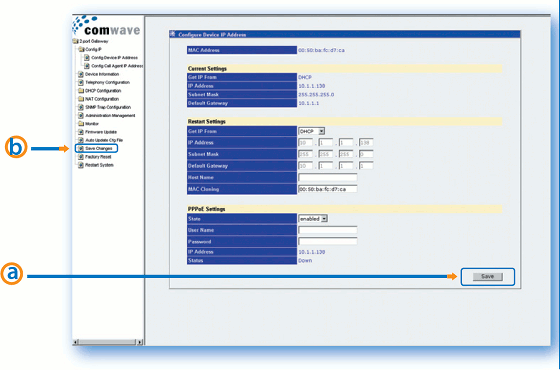

• In the bottom right corner of the main window, click the "Save" button
  Then on the left menu, select "Save Changes"

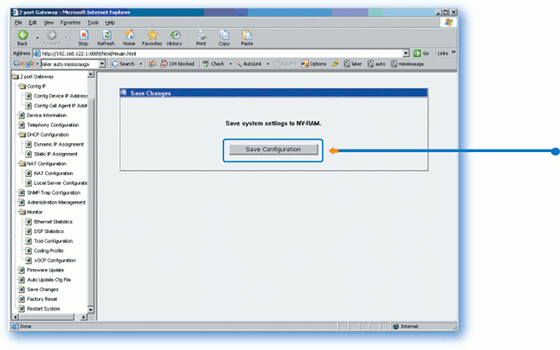

• In the main window, click on the "Save Configuration" button. Your Comwave Home Phone will reboot.

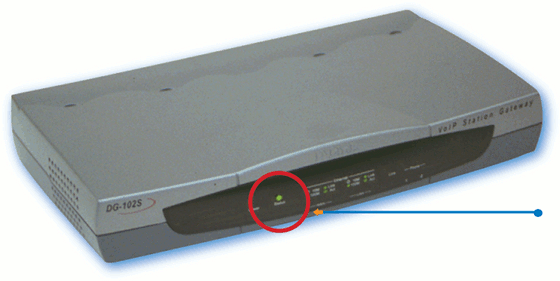

• The Comwave Home Phone Status light will blink until it has successfully connected to the Comwave network.
  Once the Status light stops flashing and becomes solid green, your phone is ready for use.
