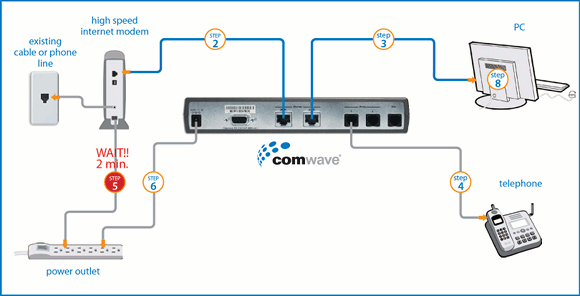

DLink - Installation with a DSL modem (without username and password)

• To begin installation, turn off your computer and disconnect the power adapter to your High Speed Internet modem.
• Connect an Ethernet cable from the High Speed Internet modem to the WAN port of the Home Phone Adapter.
• Connect a second Ethernet cable from the LAN port of the Home Phone Adapter to your computer.
• Connect your telephone handset to the PHONE 1 port of the Home Phone Adapter.
• Connect the High Speed Internet modem to a power outlet.
  Note: Please wait 2 minutes before continuing to the next step.
• Connect the Home Phone Adapter to the power outlet . The Status light will blink until it has successfully connected to the Comwave network. Once the Status light stops flashing and becomes solid green, your phone is ready for use.
• Your phone should now work.
• Start your computer.
