HT496 - Installation with DSL modem (without username and password)

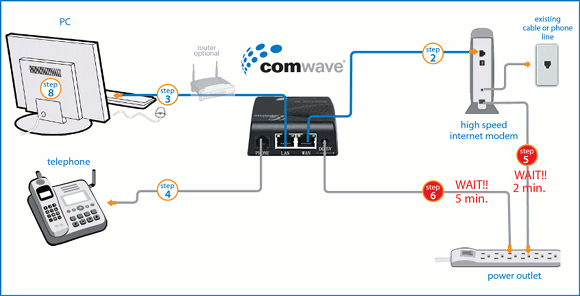

• To begin installation, turn off your computer and disconnect the power adapter to your High Speed Internet modem.
• Connect an Ethernet cable from the High Speed Internet modem to the WAN port of the Home Phone Adapter.
• Connect a second Ethernet cable from the LAN port of the Home Phone Adapter to your computer.
• Connect your telephone handset to the PHONE 1 port of the Home Phone Adapter.
• Connect the High Speed Internet modem to a power outlet.
  Note: Please wait 2 minutes before continuing to the next step.
• Connect the Home Phone Adapter to the power outlet and then the Home Phone Adapter will flash red until it has successfully connected to the Comwave Network. Do not disconnect as this could cause damage to the Adapter. Once the light has stopped flashing your phone should work. This could take 5 minutes.
• Your phone should now work.
• Start your computer.
